DuraNOVA Gas Analyzers

Check Out Our Video Gallery

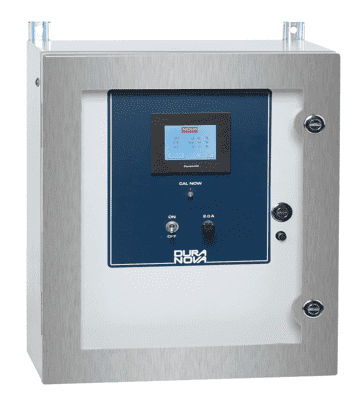

The DuraNOVA Gas Analyzer System has been designed with the flexibility and robustness required for many experimental and industrial applications such as biogas processing, syngas production, steel making and many others. DuraNOVA analyzers can be installed in challenging and hazardous indoor or outdoor environments. DuraNOVA systems come complete with sensors, sample conditioning and advanced controls all in temperature-controlled wall-mounted cabinet. In addition to measuring up to 6 different gases, this turnkey solution has a complete array of on-board diagnostics coupled with precisely-controlled sample flow, which allows automated health monitoring and corrective action through our iNOVA software. Reliable high-range detectors are included for accurate measurement of O2 / CO / CO2 / CH4 / H2 / H2S. Other gases / ranges may also be available upon request.

  • Overview

    DuraNOVA gas analyzers are the most rugged and complete gas analyzer solution on the market. Measure up to 6 gases and combine with several options for the most rugged sample conditioning available. Combine all this with controlled sample flow, pump vacuum measurement and other on-board diagnostics and you have the picture of the operation and condition of your gas analyzer making remote monitoring and correction both feasible and reasonable. Ask about our DuraNOVA turnkey solutions today.

    Applications:

    • Flue Gas & Emissions Analyzers
    • Landfill Gas Analyzers / Biogas Analyzers
    • Heat-Treating and Metal Finishing Analyzers
    • Syngas Analyzers
    • Process Gas Analysis
    • Steel-Making Analyzers
    • Other Challenging Applications & Ideas
  • Capabilities
    Gases
    Standard: O2 , CO, CO2, CH4, H2, Also Available: SO2, NO, NO2, NH3, PPM O2, DP, PPM H2
    Method of Detection
    Electrochemical sensor for O2 NDIR infrared detector for CO, CO2 and CH4 Thermal conductivity cell for H2
    Ranges Available
    0-10.0%, 0-50.0%, 0-100.0% CO 0-10.0%, 0-50.0%, 0-100.0% CO2 0-2.0%, 0-25.0%, 0-50.0%, 0-100.0% O2 0-5.0%, 0-50.0%, 0-100.0% H2 0-50.0%, 0-100.0% CH4
    Resolution
    0.1% for all gases
    Outputs
    4-20mA, TCP/IP. EIP, Modbus RTU, Profibus
    Environment
    Indoor, Outdoor, Non-Hazardous, Hazardous (Class1 or Class2)
  • Design
    • 2D generic external layout and dim drawings (with A/C, w/o A/C, PK, no PK)
    • 3D models (with A/C, w/o A/C, PK, no PK)
    • Maybe an installation video
    • Guideline for digital interfaces
    • iNOVA manual
    • Specific Application notes
      • Powdered Metal processing
      • Bread Oven Flue Gas
      • Syngas
      • Biogas
  • Start-UP

    DuraNOVA Mechanical Installation Instructions

    Check Out Our Video Gallery

    This video shows step by step instruction on how to mechanically connect your DuraNOVA Analyzer

    Please use checklist below for guidance and validation

    TGI500800SPK
    Consumable Spare Parts Kit
    TGI50801SPK
    Start-up Spare Parts Kit
    TGI50802SPK
    Complete Spare Parts Kit
  • Maintenance

    Low Flow Troubleshooting

    Check Out Our Video Gallery

    This video shows step by step instruction on how to isolate and correct low flow in the analyzer

    Please use check list below for guidance and validation

    TGI500800SPK
    Consumable Spare Parts Kit
    TGI50801SPK
    Start-up Spare Parts Kit
    TGI500800SPK
    Consumable Spare Parts Kit
    TGI50801SPK
    Start-up Spare Parts Kit
    TGI500800SPK
    Consumable Spare Parts Kit
    TGI50801SPK
    Start-up Spare Parts Kit
    TGI500800SPK
    Consumable Spare Parts Kit
    TGI50801SPK
    Start-up Spare Parts Kit
    TGI500800SPK
    Consumable Spare Parts Kit
    TGI50801SPK
    Start-up Spare Parts Kit
    TGI500800SPK
    Consumable Spare Parts Kit
    TGI50801SPK
    Start-up Spare Parts Kit
    TGI500800SPK
    Consumable Spare Parts Kit

Videos

  • Start Up
    How To Bypass Countdown
    How To Bypass Countdown

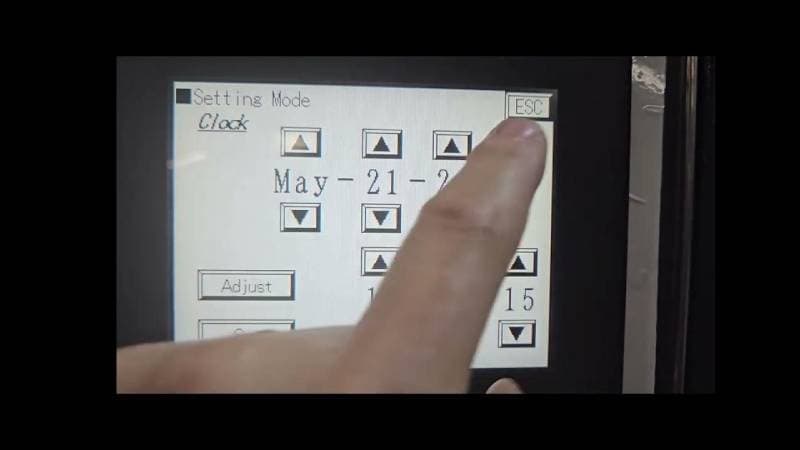

    How To Access GT32 Hidden Screen
    How To Access GT32 Hidden Screen
    How To Connect ModBus RTU Alternate Version
    How To Connect ModBus RTU Alternate Version
    How To Connect ModBus RTU
    How To Connect ModBus RTU
    Main TB1 Connections
    Main TB1 Connections
    How To Set Up A Pressure Regulator
    How To Set Up A Pressure Regulator
    DAC Tuning
    DAC Tuning
    How To Access Raw Count Display
    How To Access Raw Count Display
  • Operation
    How To Zero PPM O2
    How To Zero PPM O2
    How To Span O2 While Zeroing All
    How To Span O2 While Zeroing All
    How To Zero On N2
    How To Zero On N2
    How to Span PPM 02
    How to Span PPM 02
    How To Disable Enable Cal Check
    How To Disable Enable Cal Check
  • Maintenance
    How To Change An NGC
    How To Change An NGC
    DP Replacing
    DP Replacing
    How To Replace A TEC
    How To Replace A TEC
    How To Remove Large HSB
    How To Remove Large HSB
    How To Replace A % O2 Sensor
    How To Replace A % O2 Sensor
    How To Factory Restore
    How To Factory Restore
    Flow Control Override
    Flow Control Override
    How To Reinstall Large HSB
    How To Reinstall Large HSB
    How To Access Firmware Version Maintenance
    How To Access Firmware Version Maintenance
    How To Bypass Countdown
    How To Bypass Countdown
    How To Access GT32 Hidden Screen
    How To Access GT32 Hidden Screen
